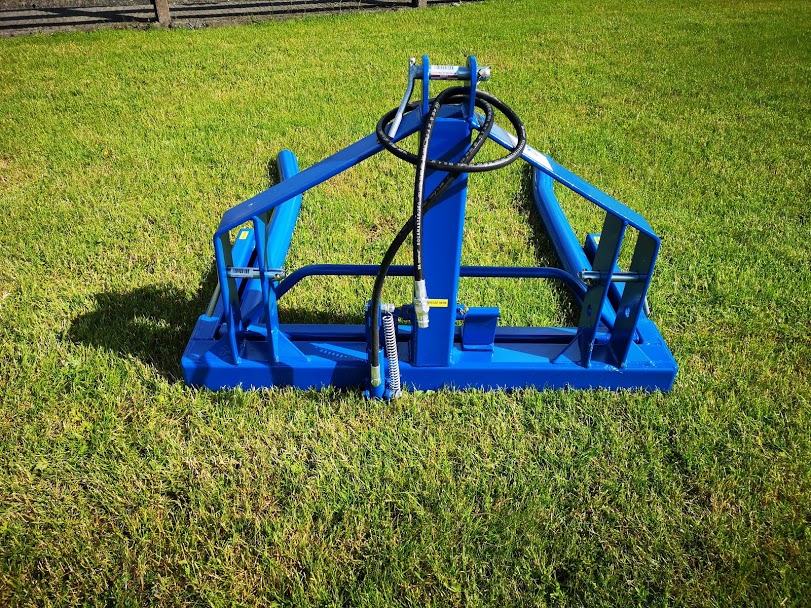

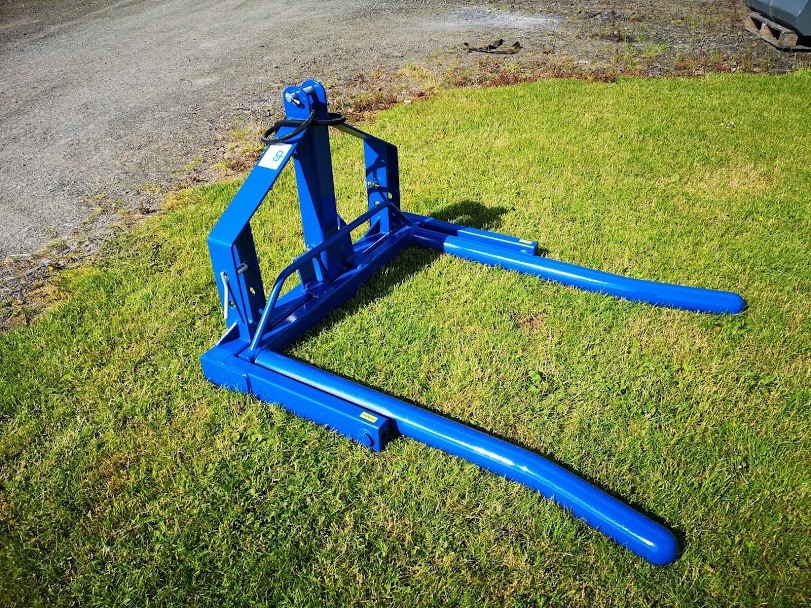

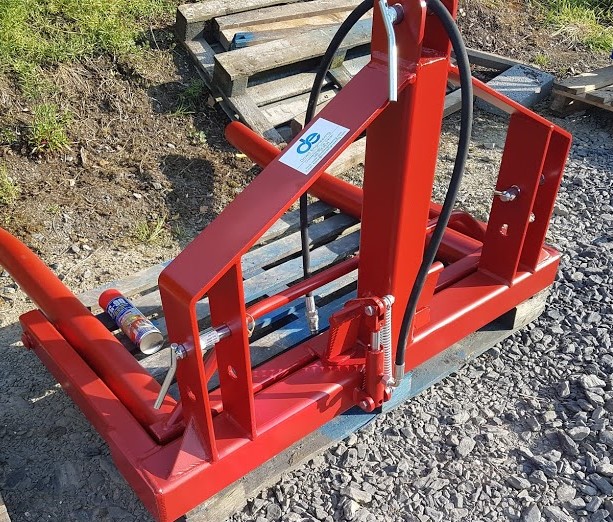

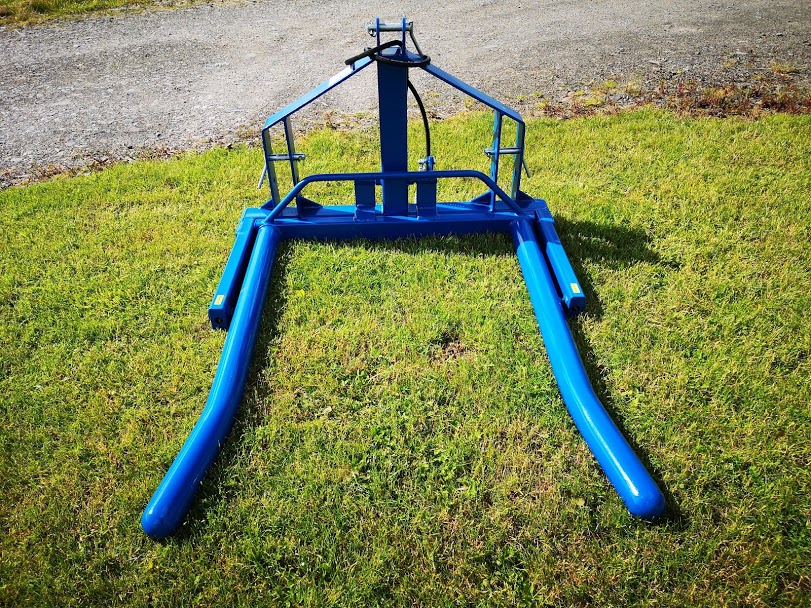

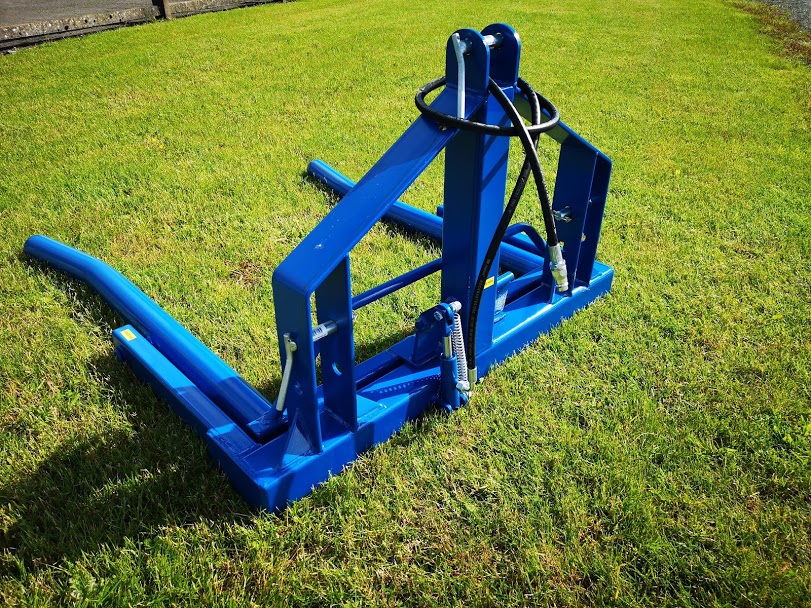

Dowd Engineering Single Bale Hydraulic Lifter
Dowd Engineering Single Bale Hydraulic Lifter
The Hydraulic Single Bale Lifter from Dowd Engineering offers a main frame manufactured from 100mm x 100mm x 8mm Box Cradles made from 88.9mm x 4mm tube. The tubes are capped with full dome ends to prevent damage to bales and all pivot points are made from hardened steel pins, in heavy bushings and are greaseable. This model also offers a double flap locking system. The robust single bale lifter is finished with zinc phosperious primer and two pac industrial gloss top coat and all stress points are plated and reinforced. Standard Cat 2 linkage so can be used on rear or front linkage and is supplied with linkage pins.
Specification for Dowd Engineering Single Bale Hydraulic Lifter
Leave a Review
Ask a Question
-
Description
The Hydraulic Single Bale Lifter from Dowd Engineering offers a main frame manufactured from 100mm x 100mm x 8mm Box Cradles made from 88.9mm x 4mm tube. The tubes are capped with full dome ends to prevent damage to bales and all pivot points are made from hardened steel pins, in heavy bushings and are greaseable. This model also offers a double flap locking system. The robust single bale lifter is finished with zinc phosperious primer and two pac industrial gloss top coat and all stress points are plated and reinforced. Standard Cat 2 linkage so can be used on rear or front linkage and is supplied with linkage pins.
-
Specifications
Single Bale Yes Yes 1220mm 1450mm 820mm 116kg -
